Tuesday, November 27, 2012

Ubuntu - German Characters on English Keyboard

I have two keyboards - USA and UK. I prefer those over German keyboard due to brackets location. The idea is to access German characters with following key combinations:
  • Right ALT + s -> ß
  • Right ALT + a -> ä
  • Right ALT + o -> ö
  • Right ALT + u -> ü

This can be achieved with xmodmap. Just create in your home directory file called .Xmodmap and copy content below into it.


For USA keyboard:
keycode 108 = ISO_Level3_Shift ISO_Next_Group ISO_Level3_Shift ISO_Nexkt_Group
keycode  30 = u U u U udiaeresis Udiaeresis
keycode  32 = o O o O odiaeresis Odiaeresis
keycode  38 = a A a A adiaeresis Adiaeresis
keycode  39 = s S s S ssharp

For UK keyboard:
keycode 108 =  Mode_switch Mode_switch Mode_switch
keycode  30 = udiaeresis Udiaeresis u U udiaeresis Udiaeresis
keycode  32 = odiaeresis Odiaeresis o O odiaeresis Odiaeresis
keycode  38 = adiaeresis Adiaeresis a A adiaeresis Adiaeresis
keycode  39 = ssharp ssharp s S s S ssharp

You can also manually load key bindings by executing xmodmap .Xmodmap





Sunday, November 25, 2012

Ubuntu - Setup Kate Editor to Open Each Document in new Window

By default Kate opens documents within single editor. In order to open each document in new Kate editor execute following commands:

printf '#!/bin/bash\n/usr/bin/kate_org -n "$@"' > kate
chmod +x kate
sudo mv /usr/bin/kate /usr/bin/kate_org
sudo mv kate /usr/bin/

Wednesday, September 5, 2012

Cassanrda 1.1 - Tuning for Frequent Column Updates

Cassandra is known for its good write performance, but there are scenarios, when you might run into trouble - especially when particular use case generates heavy disk IO. This could be the case for columns which receive frequent updates. However you can avoid those problems, with proper configuration, or just by updating to recent Cassandra version. The good news is, that it can be applied to already ruining system, so when you are already having problems, there is still a hope.

Memtables are flushed to immutable SSTables, and it is possible, that single column value can be stored in different SSTables, when its value was changing over long enough time period. This guarantees fast inserts, because data is being just appended to disk. But on the other hand, unnecessary writes will decrease disk performance, not only because many SSTables has to be written, but mainly because duplicates on disk will have to be compacted later on.

The idea is to tune Cassandra in the way, that we take benefit from frequent updates. This can be achieved by keeping data in memory and by delaying disk flushes. In this case new updates will replace existing values in memory.
This will generate less disk traffic, because it will decrease amount of flushed duplicates. This is not all - this will also create write through cache, and read requests will benefit from it. Here are some confutation tips:
  • Make sure that you have at least Cassandra 1.1 - it contains optimization for frequently changing values (CASSANDRA-2498). For the cases where single value is stored in multiple SSTables, older Cassandra versions would need to read column values from all SSTables in order to find most recent one. Now SSTables are sorted by modification time, so it's enough to read most recent value and simply ignore remaining outdated values.
  • Increase thresholds for flushing memtables. Each update on memtable, results in one less entry in SSTable.
  • Each read operation checks first memtables, if data is still there, it will be simply returned - this is the fastest possible access. Its like non blocking write through cache (based on skip list).
  • To large memtable on the other hand will result in larger commit log. This is not a problem, until your instance crashes. It will need some time to start, because it would need to read whole commit log.
  • Compaction merges SSTables together, and this increases read performance, since we have less data to go through. But this process does not have high priority. When Cassandra is nearly exhausted, it will skip compaction, and this can lead to data fragmentation.
Caching:
  • Row cache makes really sense for frequent reads of the same row(s), and additionally when you read most of the columns of each single row.
  • For active row cache, access to single column from particular row will load whole row with all its columns into memory. Analyze data access patterns, and makes sure that it is not an overhead, and that you have enough memory. It would be really waste of resources, to load million columns into memory, to just access only a few.
  • Row cache works as wright through, for data that is already in it. Data is loaded into row cache first when it's being read, and when it was not found in memtable. From this point of time it will get updated on each write operation. Frequently changing entry, without read access will not affect row cache, because it's not there.
  • Updates on data in row cache will decrease performance, and actually, those frequently changing columns are probably also available in memtable. Read process will first search memtable, and in case of hit ignore row cache. From this point of view row cache makes sense, if you also read other columns which are not changing frequently. For example single row has 200 columns, 50 receive frequent updates, 100 sporadic, and read process reads always all. In this case row cache makes sense - we will have to actualize 50 columns on each insert, but we will gain fast access to remaining 150.
  • It might be good idea to disable row cache, increase memtable size in hope to reduce disk writes, and to use memtable as cache.
  • Disabling row cache does not necessary mean additional disk seeks. Cassandra uses memory mapped files, which means that each file access is being cached by operating system. Relaying on memory mapped files is nothing new - Mongo does not have cache at all - it's not needed, since file system cache works just fine. But Mongo has different data structure on hard drive, because they store BSON document optimized for reads, its all in one place, Cassandra might (not always) need first to collect data from different locations.
  • Row cache would help also in situation where single row spreads over many SSTables. In this case putting all data together is CPU intensive operation, not mentioning possible disk access to read each column value.
  • When row cache is disabled, key cache must be used. Key cache is like an index - and you definitely want to load your whole index into memory.
  • When row cache is disabled and key cache is enabled, and read operation get hits on key cache, we have quiet performant solution. Searching SSTables runs fully in memory, only reading column value itself requires disk access. And maybe even not that, since it's memory mapped file.
  • When disabling row cache remember to tune read ahead. The idea is, to read from disk only single column and not more data when it's not needed.
Just to summary.... run performance tests, check Cassandra statistics, and verify how many SSTables has to be searched to find data, and what is the cache usage. This might be good entry point to change memtable size, or to tune caching. In my case disabling row cache, large key cache and increased memtable thresholds was the right decision.


Wednesday, August 22, 2012

Cassandra 1.1 - Reading and Writing from SSTable Perspecitve

To keep things simple I will stick to read / write value of one column within single row, and single node deployment.

Writing

We will store one column given by row key and column name.

Each thrift insert request blocks until data is stored in commit log and memtable - this is all, other operations (like replication) are asynchronous. Additionally client can provide consistency level, in this case call will be blocked until required replicas respond, but asides form this, write operation can be seen as simple append.
Commit log is required, because memtable exists only in memory, in case of system crash, Cassandra would recreate memtables from commit log.

Memtable can be seen as dedicated cache created individually for each column family. It's based on ConcurrentSkipListMap - so there is no blocking on read or insert.
Memtable contains all recent inserts, and each new insert for the same key and column will overwrite existing one. Multiple updates on single column will result in multiple entries in commit log, and single entry in memtable.
Memtable will be flushed to disk, when predefined criteria are met, like maximum size, timeout, or number of mutations. Flushing memtable creates SSTable and this one is immutable, it can be simply saved to disk as sequential write.


Compaction

Compaction process will merge few SSTables into one. The idea is, to clean up deleted data, and to merge together different modifications of single column. Before compaction, a few SSTables could contain value of single column, after compaction it will be only one.

Reading

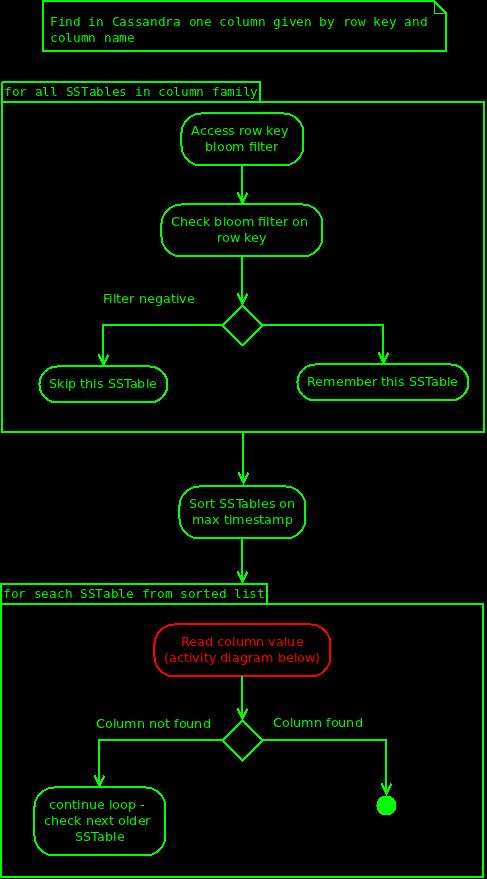

We will try to find value of single column within one row.

First memtable is being searched, it's like write through cache, hit on it provides the most recent data - within single instance of course, not in a whole cluster.

As the second step Cassandra will search SSTables, but only those within single column familySSTables are grouped by column family, this is also reflected on disk, where SSTables for each column family are stored together in dedicated folder.

Each SSTable contains row bloom filter, it is build on row keys, not on column names. This gives Cassandra the possibility to quickly verify, whenever given SSTable at least contains particular row. Row bloom filers are always hold in memory, so checking them is performant. False positives are also not problem anymore, because latest Cassandra versions have improved hashing and increased size of bit masks.

So ... Cassandra have scanned all possible SSTables within particular column family, and found those with positive bloom filter for row key. However the fact, that given SSTable contains given row, does not necessary mean, that is also contains given column. Cassandra needs to "look into SSTable" to check whenever it also contains given column. But it does not have to blindly scan all SSTables with postie bloom filter on row key. First it will sort them by last modification time (max time from metadata). Now it has to find first (youngest) SSTable which contains our column. It is still possible, that this particular column is also stored in other SSTables, but those are definitely older, and therefore not interesting. This optimization comes first with Cassandra 1.1 (CASSANDRA-2498), previous version would need to go over all SSTables.

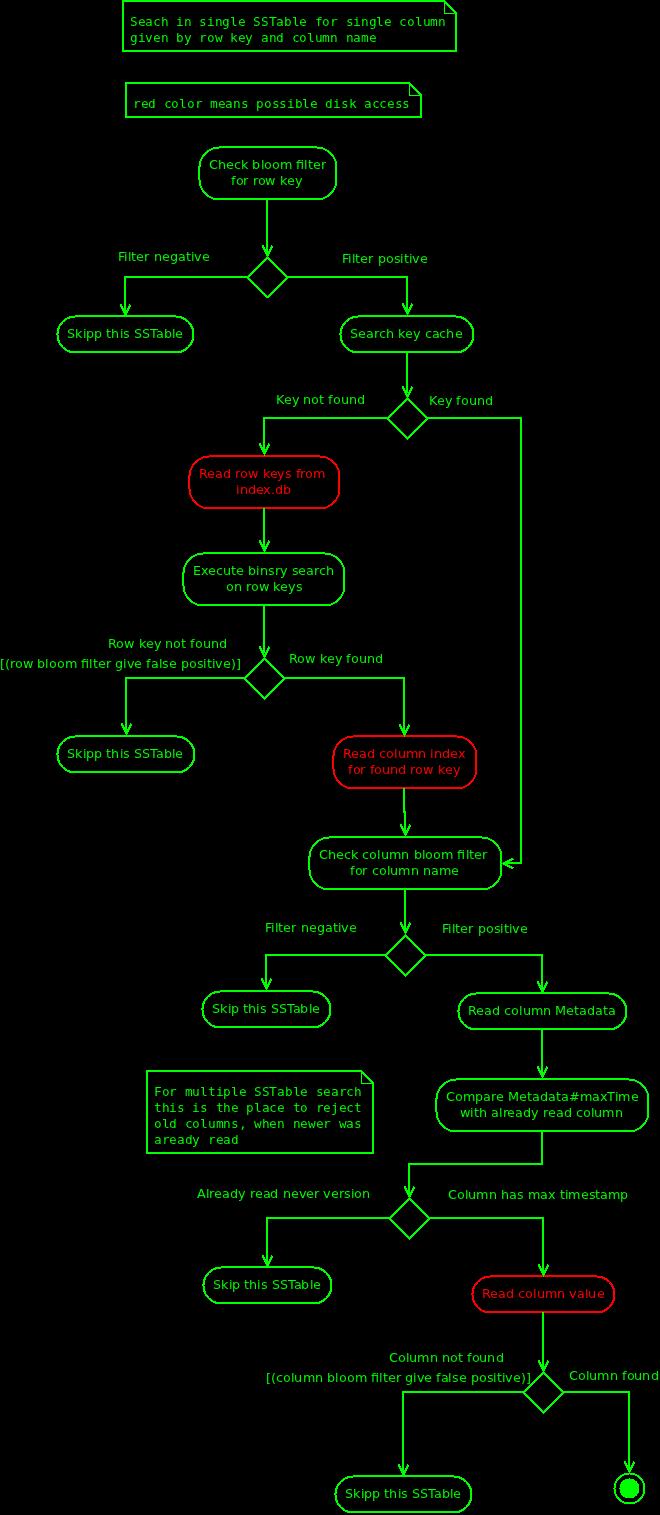

Cassandra has found all SSTables with positive bloom filter on row key, and it has sorted them by last modification time, now it needs to find this one which finally has our column - it's time to look inside SSTable:
First Cassandra will read row keys from index.db, and find our row key using binary search. Found key contains offset to column index. This index has two informations: file offset for each column value, and bloom filter build on column names. Cassandra checks bloom filter on column name, if it is positive it tries to read column value - this is all.

For the record:
  • index.db contains sorted row keys, not the column index as the name would suggest - this one can be found in data.db, under dedicated offset, which is stored together witch each row key.
  • SSTable has one bloom filter build on row keys. Additionally each row hat its own bloom filter, this one is build on column names. SSTable containing 100 rows will have 101 bloom filters.
  • In order to find given column in SSTable Cassandra will not immediately access column index, it will first check key cache - hit will lead directly from row key to column index. In this case only one disk access is required - to read column value.

Conclusion

Bloom filters for rows are always in memory, accessing them is fast. But accessing column index might require extra disk reads (row keys and column index), and this pro single SSTable.
Reading can get really slow, if Cassandra needs to scan large amount of SSTables, and key cache is disabled, or not loaded yet.

Cassandra sorts all SSTables by modification time, which at least optimizes case where single column is stored in many locations. On the other hand, it might need to go over many SSTables to find "old" column. Key cache in such situation increases performance significantly.

Row keys for each SSTable are stored in separate file called index.db, during start Cassandra "goes over those files", in order to warm up.  Cassandra uses memory mapped files, so there is hope, that when reading files during startup, then first access on those files will be served from memory.





Thursday, August 2, 2012

RESTEasy Spring Integration - Tutorial Part 2 - Exeption Handling

Second part will describe exception handling in REST scope - a few design patterns and way of implementing them. I will give also some examples of anti patters - just for a contrast.

In general, JEE projects are dividing exceptions into three parts - checked, unchecked exceptions (runtime), and throwable.

  • Checked exceptions are visible in method signature, and therefore they must be handled by the developer. When method declares such exception, it means, that someone can possibly process this exception, and do something useful with it. For example, it can display message to the user, that entered password is incorrect, or given account was not found. It is very important to NOT overuse checked exceptions - do not define every possible event as checked exception, this will decrease method readability. When defining check exception, ask yourself always a question: it is possible to react in a special way on this particular event? Can it be handled ? And for the record - creating long entry does not count ;) Also when you notice frequent catch(Exception e){....} blocks around your code, it means, that something went wrong during design phase - people just does not care about defined exceptions, so maybe they should be runtime? I am assuming, that generic catch blocks are rear in correctly written code, if existing, they are well documented so the others can understand the reason.
  • Unchecked exceptions are not visible in method signature - those are all possible events, which break current process and nothing can be done about it. In the most cases, log entry is created, monitoring framework is being notified, and GUI displays generic error message.
  • Throwables shoud never be handled by developer -  catch(Throwable e){....} block in not acceptable. Errors like LinkageError or OutOfMemoryError must be handled by container.
Remember, that decision whenever given exception is runtime or checed depends on given context. For example:
  • DBConnectionError on high level business interface is definitely runtime - here we even do not notice, that database is part of our transaction - this is being encapsulated behind service interface, which as every proper high level interface hides implementation details. On the other hand, connection pool maybe can handle such exception by reestablishing connection to another DB instance - on this level DBConnectionError would be checked exception, because it is clearly connection pool responsibility to react on this error.
  • Null-Pointer-Like-Exceptions are runtime in every scope - it breaks given transaction and this is all - no one will catch this exception, so it is not visible in method signature, and as usual not expected.
  • AccountNotFoundException is always checked - it does not matter on which level you are. Account was not found, and therefore certain action cannot be executed, in that case developer can create missing account, or in the worst case notify user, that he actually does not exists.
Enough theory - lets concentrate on exception handling in REST scope. We will extend project from previous post by few error use cases:
  • Checked exception: MessageForbidenException, it will be thrown, when hi-message begins with "jo!". REST interface in this case returns status code: "400 Bad Request" and sets response header "ERR_CODE=MESSAGE_FORBIDDEN"
  • Checked exception: IncorrectLengthException, it will be thrown, when message size in not between 3 and 10 characters. REST interface in this case returns status code: "400 Bad Request" and sets response header "ERR_CODE=INCORRECT_LENGTH"
  • We would like also to log all possible exceptions (runtimes) - there are several reasons for that - to create dedicated log entry, or to notify monitoring framework. In case of any exception, we would like to set status code: "500 Internal Server Error", and HTTP Header: EX_CLASS, which contains exception's class name, and message body should contain stack trace (this might be security issue for some systems - be cheerful here).
There are two approaches to implement exception handling - traditional by defining try-catch blocks, or exception mappers as providers.

Project update

We will extend project from previous tutorial, by adding new exceptions,  exception mappers, add new REST Resource: HelloRestServiceCatch.
The existing REST resource HelloRestService will remain almost unchanged, its methods will throw new exceptions, and those will be handled by exception mappers.
HelloRestServiceCatch in contrast will contain try-catch exception handling, so both approaches can be easily compared.

This is the updated project structure:


and this simple validation logic responsible for throwing exceptions (build into existing service):
@Named
public class HelloSpringService {

    public String sayTextHello(String msg) throws MessageForbidenException,
    IncorrectLengthException {
        verifyIncommingMessage(msg);

        return msg + "--> Hello";
    }

    public HelloResponse sayJavaBeanHello(HelloMessage msg) throws MessageForbidenException,
        IncorrectLengthException {
        verifyIncommingMessage(msg.getMsg());

        return new HelloResponse(msg.getMsg() + "--> Hello " +
                (msg.getGender() == Gender.MALE ? "Sir" : "Madam"), new Date());
    }

    private void verifyIncommingMessage(String msg) throws MessageForbidenException,
        IncorrectLengthException {
        if (msg == null) {
            throw new IncorrectLengthException("Empty message not allowed");
        }
        msg = msg.trim();
        int msgLength = msg.length();
        if (msgLength < 3 || msgLength > 10) {
            throw new IncorrectLengthException("Message length not between 3 and 10 characters");
        }

        if (msg.toLowerCase().startsWith("jo!")) {
            throw new MessageForbidenException("Jo! is not allowed");
        }
    }
}
Curl examples triggering new exceptions:
>> GET REQUEST <<
curl -iX POST -H "Content-Type: application/json" -d '{"msg":"Jo!","gender":"MALE"}'
   http://localhost:8080/resteasy_spring_p2/rest/Hello/catch/javabean

HTTP/1.1 400 Bad Request
Server: Apache-Coyote/1.1
ERR_CODE: MESSAGE_FORBIDDEN
Content-Type: application/json
Content-Length: 18
Connection: close

>> RESPONSE <<
Jo! is not allowed

>> GET REQUEST <<
curl -iX POST -H "Content-Type: application/json" -d '{"msg":"Hi","gender":"MALE"}'
   http://localhost:8080/resteasy_spring_p2/rest/Hello/catch/javabean

HTTP/1.1 400 Bad Request
Server: Apache-Coyote/1.1
ERR_CODE: INCORRECT_LENGTH
Content-Type: application/json
Content-Length: 46
Connection: close

>> RESPONSE <<
Message length not between 3 and 10 characters

>> GET REQUEST <<
curl -iX POST -H "Content-Type: application/json" -d '{"msg":"Hi","gender":"FRED"}'
   http://localhost:8080/resteasy_spring_p2/rest/Hello/javabean

HTTP/1.1 500 Internal Server Error
Server: Apache-Coyote/1.1
EX_CLASS: org.codehaus.jackson.map.JsonMappingException
Content-Type: application/json
Content-Length: 4689
Connection: close

>> RESPONSE <<
Can not construct instance of org.mmiklas.resttutorial.model.Gender
from String value 'FRED': value not one of declared Enum instance names.....

Traditional try-catch Approach

Traditional try-catch approach has several problems, and well .... no advantages:
  • Different methods throw the same exception, and have similar catch block, to handle it. This code could be extracted as separate method, but still you need to relay on developer, to call it. On the end there is no guarantee, that the same exception will be always handled in the same way. The goal of consistent error handling is, to map given exception to the same REST representation - MessageVorbidenException results always in 400.
  • Catching Exception is mostly bad practice. If we define new checked exception, we also expect that it will be handled by developers in dedicated way - at the begining code should not compile, since there is no catch block for this new exception. But in case of catch(Exception e){....} code will compile and our new exception will be treated as general error, and not in a special way as expected. We might even not notice that.
This is the REST service implementation using try-catch statements:
@Named
@Path("/Hello/catch")
public class HelloRestServiceCatch {

    private final static Logger LOG = Logger.getAnonymousLogger();

    @Inject
    private HelloSpringService halloService;

    // curl http://localhost:8080/resteasy_spring_p2/rest/Hello/catch/text?msg=Hi%20There
    @GET
    @Path("text")
    @Produces(MediaType.APPLICATION_FORM_URLENCODED)
    public Response sayTextHello(@QueryParam("msg") String msg) {
        try {
            String resp = halloService.sayTextHello(msg);
            return Response.ok(resp).build();

        } catch (MessageForbidenException e) {
            return handleMessageForbidenException(e);

        } catch (IncorrectLengthException e) {
            return handleIncorrectLengthException(e);

        } catch (Exception e) {
            return handleException(e);
        }
    }

    // curl -X POST -H "Content-Type: application/json" -d '{"msg":"Hi There","gender":"MALE"}'
    // http://localhost:8080/resteasy_spring_p2/rest/Hello/catch/javabean
    @POST
    @Path("javabean")
    @Produces({ MediaType.APPLICATION_JSON, MediaType.APPLICATION_XML })
    @Consumes({ MediaType.APPLICATION_JSON, MediaType.APPLICATION_XML })
    public Response sayJavaBeanHello(HelloMessage msg) {
        try {
            HelloResponse resp = halloService.sayJavaBeanHello(msg);
            return Response.ok(resp).build();

        } catch (MessageForbidenException e) {
            return handleMessageForbidenException(e);

        } catch (IncorrectLengthException e) {
            return handleIncorrectLengthException(e);

        } catch (Exception e) {
            return handleException(e);
        }
    }

    private Response handleException(Exception e) {
        LOG.log(Level.WARNING, e.getMessage(), e);

        return Response.status(Status.INTERNAL_SERVER_ERROR).header(Headers.EX_CLASS.name(),
                e.getClass().getCanonicalName())
                .entity(e.getMessage() + " - " + getStackTrace(e)).build();
    }

    private Response handleIncorrectLengthException(IncorrectLengthException e) {
        return Response.status(Status.BAD_REQUEST).header(Headers.ERR_CODE.name(),
                RespCodes.INCORRECT_LENGTH.name()).entity(e.getMessage()).build();
    }

    private Response handleMessageForbidenException(MessageForbidenException e) {
        return Response.status(Status.BAD_REQUEST).header(Headers.ERR_CODE.name(),
                RespCodes.MESSAGE_FORBIDDEN.name()).entity(e.getMessage()).build();
    }

    private String getStackTrace(Exception ex) {
        StringWriter sw = new StringWriter();
        PrintWriter pw = new PrintWriter(sw, true);
        ex.printStackTrace(pw);
        return sw.getBuffer().toString();
    }
}

Exception Mappers

The approach with exception mappers has few nice futures:
  • Clan code - REST implementation is not overflowed with try-catch blocks
  • No code repetition
  • Centralized and automatic mapping from Java exceptions to REST representation
  • Each exception will always result in the same REST response - this improves interface stability and integrity
  • No Exception catch blocks - check style will be happy about that ;)
How it works?
REST resource class do not catch exceptions, they are simply declared in method signature. By default RESTEasy would convert such exception to "500 Internal Server Error", since it was not handled by application logic.
In order to handle exceptions we need to register exception mappers. Each one can handle single exception, and also its subclasses - if there is no dedicated handler for particular subclass. For example: we can register handler for Exception and it will get called for every possible exception inclusive runtimes, but we can still register handler for IncorrectLengthException (subclass of Exception), and in this handler will be called when IncorrectLengthException occurs. This was not always the case - in the older RESTEasy versions, exception mapper registered on parent class would be called for all child exceptions, so it was not possible to register exception mapper on Exception because other mappers would not be called.

RESTEasy looks for classes marked @Provider and implementing ExceptionMapper<E>, where E declares exception class which will be handled by this mapper. In the normal case, RESTEasy would scann class path, but since we are using Spring integration, it will ask Spring instead. This is the reason, why mapper classes are annotated with @Named and @Provider.

Updated REST Resource (only exceptions in method signature):
@Named
@Path("/Hello")
public class HelloRestService {

    @Inject
    private HelloSpringService halloService;

    // curl http://localhost:8080/resteasy_spring_p1/rest/Hello/text?msg=Hi%20There
    @GET
    @Path("text")
    @Produces(MediaType.APPLICATION_FORM_URLENCODED)
    public Response sayTextHello(@QueryParam("msg") String msg)
            throws MessageForbidenException, IncorrectLengthException {
        String resp = halloService.sayTextHello(msg);
        return Response.ok(resp).build();
    }

    // curl -X POST -H "Content-Type: application/json" -d '{"msg":"Hi There","gender":"MALE"}'
    // http://localhost:8080/resteasy_spring_p1/rest/Hello/javabean
    @POST
    @Path("javabean")
    @Produces({ MediaType.APPLICATION_JSON, MediaType.APPLICATION_XML })
    @Consumes({ MediaType.APPLICATION_JSON, MediaType.APPLICATION_XML })
    public Response sayJavaBeanHello(HelloMessage msg)
            throws MessageForbidenException, IncorrectLengthException {
        HelloResponse resp = halloService.sayJavaBeanHello(msg);
        return Response.ok(resp).build();
    }
}
Exception mappers:
@Provider
@Named
public class IncorrectLengthExceptionMapper implements
                                    ExceptionMapper<IncorrectLengthException> {

    public Response toResponse(IncorrectLengthException e) {
        return Response.status(Status.BAD_REQUEST).header(Headers.ERR_CODE.name(),
                RespCodes.INCORRECT_LENGTH.name()).entity(e.getMessage()).build();
    }

}

@Provider
@Named
public class MessageForbidenExceptionMapper implements
                                    ExceptionMapper<MessageForbidenException> {

    public Response toResponse(MessageForbidenException e) {
        return Response.status(Status.BAD_REQUEST).header(Headers.ERR_CODE.name(),
                RespCodes.MESSAGE_FORBIDDEN.name()).entity(e.getMessage()).build();
    }

}

@Provider
@Named
public class UnhandledExceptionMapper implements ExceptionMapper<Exception> {

    private final static Logger LOG = Logger.getAnonymousLogger();

    public Response toResponse(Exception e) {
        LOG.log(Level.WARNING, e.getMessage(), e);

        return Response.status(Status.INTERNAL_SERVER_ERROR).
                header(Headers.EX_CLASS.name(), e.getClass().getCanonicalName()).
                    entity(e.getMessage() + " - " + getStackTrace(e)).build();
    }

    private String getStackTrace(Exception ex) {
        StringWriter sw = new StringWriter();
        PrintWriter pw = new PrintWriter(sw, true);
        ex.printStackTrace(pw);
        return sw.getBuffer().toString();
    }
}

Project Source Download

resteasy_spring_p2.zip

https://github.com/maciejmiklas/resteasy_spring_p2.git

Tuesday, July 17, 2012

RESTEasy Spring Integration - Tutorial Part 1 - Introduction

This is step by step tutorial explaining how to integrate RESTEasy with Spring.
First tutorial part covers setting up simple REST Service, and request processing by Spring components.

Spring implementation is based version 3 with dependency injection. I do not use Spring annotations, but javax.inject instead. I find this approach more flexible, since is not tightly coupled with particular technology.

RESTEasy can be deployed in a various ways - I will concentrate on the most popular one - which is the web application with component scan. At the begining we will start with web 2.4 and later on update to 3.0.

Stand alone deployment, without spring would consists of two main parts - servlet for request processing, bootstrap listener which handles configuration, and finally REST Services itself. Bootstrap listener scans classpath and looks for classes annotated with @Path - those are potential candidates for REST Service. They will be registered in request dispatcher in order to handle incoming HTTP calls. Since this is stand alone deployment, RESTEasy will simply create instances of found REST Services - this means, that those instances and not deployed in any particular container (except tomcat). For example they cannot access Spring context - especially because there is none ;). But if developer would like to access Spring context within such setup, he would need to manually load Spring context from REST Service class. This is typical approach when accessing Spring from servlet, but there is much better solution:

Let Spring manage services and their dependencies, and RESTEasy handles REST/HTTP related stuff.

In the stand alone example, the REST Services (annotated with @Path) were created by RESTEasy classpath scanner. Now we will use Spring to instantiate REST Services and all dependent components.
When the web application starts, as first step the SpringContextLoaderListener is being triggered - it initializes Spring context and all declared components.
In the second step, the RESTEasy bootstrap is being triggered - but this is special one, designed for usage with spring. It does not scan classpath for @Path annotated classes - instead it queries Spring for all beans with @Path annotation, and Spring returns references to those beans. This is a big difference, when compared to standalone setup. RESTEasy will not create new instance of REST Service, it will reference beans created by Spring. Basically this is the main difference between standalone deployment and one based on Spring - REST Service instances are created by Spring, so they are running within Spring container, and have access to all Spring components, like any other Spring bean. RESTEasy only forwards incoming calls to those Spring beans.

Hints:
  • Service, component, spring managed bean, REST Service - all are synonyms, and technically they are Plain Java Objects Objects managed by Spring
  • Do not instantiate services with new operator. This would create new class outside of Spring context, and such class cannot access Spring manged beans, and therefore injections will not work (will remain null).
  • Do not register REST servlet on root context ("/*"), always use some path ("/rest/*"). You might need to add another servlet in the future, and this new servlet will conflict with one registered on root context. You can remove extra path with proper Apache configuration.

Tutorial Application

This is a web application which exposes simple REST Service. Its implementation forwards incoming calls to Spring component, which handles business logic - in our case it is answer to traditional "Hello World" message.

REST Service exposes two methods:
  • GET - /Hello/text -  request/response attributes are passed as text in URL. Request has single msg path parameter.  Response contains message from request with appended "Hello" text.
  • POST - /Hello/javabean - request/response attributes are passed in body as JSON/XML documents. Request contains msg and additionally gender attribute. Response contains message from request with appended "Hello Sir" or "Hello Madam" - depending on provided gender. Response includes also server time, it's not formatted - this will be covered later.

Curl examples:
>> GET REQUEST <<
curl -i http://localhost:8080/resteasy_spring_p1/rest/Hello/text?msg=Hi%20There
HTTP/1.1 200 OK
Server: Apache-Coyote/1.1
Content-Type: application/x-www-form-urlencoded
Content-Length: 17

>> RESPONSE <<
Hi There--> Hello

>> POST REQUEST <<
curl -i -X POST -H "Content-Type: application/json" -d '{"msg":"Hi There","gender":"MALE"}'
  http://localhost:8080/resteasy_spring_p1/rest/Hello/javabean
HTTP/1.1 200 OK
Server: Apache-Coyote/1.1
Content-Type: application/json
Transfer-Encoding: chunked

>> RESPONSE <<
{"response":"Hi There--> Hello Sir","serverTime":1341305935291}

Project Structure (Maven)













  • org.mmiklas.resttutorial.model - POJOs / transfer objects for REST Service

    • org.mmiklas.resttutorial.rest - REST Service (Resource) implementation
    • org.mmiklas.resttutorial.server - Spring component containing backed implementation
    • resources - XML configuration files for logger and Spring
    • webapp/WEB-INF - deployment descriptor










    Spring Configuration


    Spring configuration consists of single XML file which enables classpath component scan. Dependencies between Spring components are declared by annotations - @Named declares Spring component, and @Inject references existing component.

    src/main/resources/tutorial-spring-context.xml
    <?xml version="1.0" encoding="UTF-8"?>
    <beans xmlns="..">
        <context:component-scan base-package="org.mmiklas.resttutorial" />
    </beans>

    Deployment Descriptor


    web.xml has following functions (later on we will update it to 3.0, now its 2.4):
    • initializes Spring context from XML file
    • initializes RESTEasy and enables Spring integration
    • registers RESTEasy dispatcher servlet on "/rest/*" context

    src/main/webapp/WEB-INF/web.xml
    <?xml version="1.0" encoding="UTF-8" ?>
    <web-app xmlns="...">

        <display-name>Spring REST Easy Tutorial</display-name>

        <!-- Custom name for main spring configuration -->
        <context-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>
                classpath:tutorial-spring-context.xml
            </param-value>
        </context-param>

        <!-- RESTEasy configuration -->
        <listener>
            <listener-class>org.jboss.resteasy.plugins.server.servlet.ResteasyBootstrap
            </listener-class>
        </listener>

        <!-- RESTEasy <-> Spring connector (RESTEasy can access Spring beans) -->
        <listener>
            <listener-class>org.jboss.resteasy.plugins.spring.SpringContextLoaderListener
            </listener-class>
        </listener>

        <!-- RESTEasy HTTP Request processor -->
        <context-param>
            <param-name>resteasy.servlet.mapping.prefix</param-name>
            <param-value>/rest</param-value>
        </context-param>
        <servlet>
            <servlet-name>restservlet</servlet-name>
            <servlet-class>org.jboss.resteasy.plugins.server.servlet.HttpServletDispatcher
            </servlet-class>
        </servlet>

        <!-- NEVER map servlet to root context "/*" ! -->
        <servlet-mapping>
            <servlet-name>restservlet</servlet-name>
            <url-pattern>/rest/*</url-pattern>
        </servlet-mapping>
    </web-app>


    Transfer Objects (POJOs)

    Transfer objects will be serialized and deserialized from/to JSON. The configuration in both cases is made with JAXB annotations, new JSON parsers are supporting those - but make sure that you have latest version, because it was not always the case.


    package org.mmiklas.resttutorial.model;

    public enum Gender {
        MALE, FEMALE;
    }


    package org.mmiklas.resttutorial.model;

    import javax.xml.bind.annotation.XmlAccessType;
    import javax.xml.bind.annotation.XmlAccessorType;
    import javax.xml.bind.annotation.XmlRootElement;

    @XmlRootElement
    @XmlAccessorType(XmlAccessType.FIELD)
    public class HelloMessage {

        private String msg;

        private Gender gender;

        public String getMsg() {
            return msg;
        }

        public void setMsg(String msg) {
            this.msg = msg;
        }

        public Gender getGender() {
            return gender;
        }

        public void setGender(Gender gender) {
            this.gender = gender;
        }
    }



    package org.mmiklas.resttutorial.model;

    import java.util.Date;

    import javax.xml.bind.annotation.XmlAccessType;
    import javax.xml.bind.annotation.XmlAccessorType;
    import javax.xml.bind.annotation.XmlRootElement;

    @XmlRootElement
    @XmlAccessorType(XmlAccessType.FIELD)
    public class HelloResponse {

        private String response;

        private Date serverTime;

        public HelloResponse(String response, Date serverTime) {
            this.response = response;
            this.serverTime = serverTime;
        }

        public String getResponse() {
            return response;
        }

        public Date getServerTime() {
            return serverTime;
        }

    }


    REST Service


    REST implementation is based only on standard Java API - it does not have Spring or RESTEasy dependencies. This is really good approach to use standardized API as far as possible - it does not matter whenever you are planning to stick with particular framework forever - clean standardized code is easier to read.

    @Named annotation defines HelloRestService class as Spring component, and @Path declares this class additionally as REST Service provider. Spring will create instance of our class, and RESTEasy will expose its methods over HTTP.

    sayTextHello accepts GET messages on ..../Hallo/text and reads query parameter msg.

    sayJavaBeanHello accepts POST messages on ..../Hallo/javabean and supports XML and JSON documents. XML is supported by default, since Java contains required providers (marshaller/unmarshaller). JSON must be enabled - since it's not JDK part - I will describe that in next chapter.

    package org.mmiklas.resttutorial.rest;

    import javax.inject.Inject;
    import javax.inject.Named;
    import javax.ws.rs.Consumes;
    import javax.ws.rs.GET;
    import javax.ws.rs.POST;
    import javax.ws.rs.Path;
    import javax.ws.rs.Produces;
    import javax.ws.rs.QueryParam;
    import javax.ws.rs.core.MediaType;
    import javax.ws.rs.core.Response;

    import org.mmiklas.resttutorial.model.HelloMessage;
    import org.mmiklas.resttutorial.model.HelloResponse;
    import org.mmiklas.resttutorial.server.HelloSpringService;

    @Named
    @Path("/Hello")
    public class HelloRestService {

        @Inject
        private HelloSpringService halloService;

        // curl http://localhost:8080/resteasy_spring_p1/rest/Hello/text?msg=Hi%20There
        @GET
        @Path("text")
        @Produces(MediaType.APPLICATION_FORM_URLENCODED)
        public Response sayTextHello(@QueryParam("msg") String msg) {
            String resp = halloService.sayTextHello(msg);
            return Response.ok(resp).build();
        }

        // curl -X POST -H "Content-Type: application/json" -d '{"msg":"Hi There","gender":"MALE"}'
        //   http://localhost:8080/resteasy_spring_p1/rest/Hello/javabean
        @POST
        @Path("javabean")
        @Produces({ MediaType.APPLICATION_JSON, MediaType.APPLICATION_XML })
        @Consumes({ MediaType.APPLICATION_JSON, MediaType.APPLICATION_XML })
        public Response sayJavaBeanHello(HelloMessage msg) {
            HelloResponse resp = halloService.sayJavaBeanHello(msg);
            return Response.ok(resp).build();
        }
    }


    Spring Component (Backend)


    Spring implementation is self explanatory - service is declared with @Named. @Component would work as well, but it's not standarized annotation.
    @Named
    public class HelloSpringService {

        public String sayTextHello(String msg) {
            return msg + "--> Hello";
        }

        public HelloResponse sayJavaBeanHello(HelloMessage msg) {
            return new HelloResponse(msg.getMsg() + "--> Hello " +
        (msg.getGender() == Gender.MALE ? "Sir" : "Madam"), new Date());
        }
    }

    JSON Provider


    sayJavaBeanHello REST method supports JSON media type. In order to enable it, we only need to have proper jar in classpath:
    <dependency>
        <groupId>org.jboss.resteasy</groupId>
        <artifactId>resteasy-jackson-provider</artifactId>
        <version>2.3.2.Final</version>
    </dependency>

    RESTEasy scans during bootstrap phase classpath and searches for content providers - they are divided into two groups - marshaller and unmarshaller:
    • unmarshaller class in annotated with @Provider, @Consumes and implements MessageBodyReader interface
    • marshaller class in annotated with @Provider, @Produces and implements MessageBodyWriter interface
    @Provider annotation is only marker declaring, that given class has some interesting functionality - first the implementing interface specifies it - annotation alone is not sufficient. @Produces and @Consumes are defining mime type which is supported by our provider - the same annotations can be found on rest methods.

    Both interfaces above have generic type (T), which is currently set to Object - it provides possibility to register dedicated provider for the same mime type, but different class type. For example we can register different provider for User and Group and both for mime type JSON.

    @Provider
    @Produces(MediaType.APPLICATION_JSON)
    public class MyMarshaller implements MessageBodyWriter<Object> {

        @Override
        public boolean isWriteable(Class<?> type, Type genericType,
                Annotation[] annotations, MediaType mediaType) {
            return false;
        }

        @Override
        public long getSize(Object t, Class<?> type, Type genericType,
                Annotation[] annotations, MediaType mediaType) {
            return 0;
        }

        @Override
        public void writeTo(Object t, Class<?> type, Type genericType,
                Annotation[] annotations, MediaType mediaType,
                MultivaluedMap<String, Object> httpHeaders, OutputStream entityStream)
                        throws IOException, WebApplicationException {
        }
    }

    @Provider
    @Consumes(MediaType.APPLICATION_JSON)
    public class MyUnmarshaller implements MessageBodyReader<Object> {

        @Override
        public boolean isReadable(Class<?> type, Type genericType,
                Annotation[] annotations, MediaType mediaType) {
            return false;
        }

        @Override
        public Object readFrom(Class<Object> type, Type genericType,
                Annotation[] annotations, MediaType mediaType,
                MultivaluedMap<String, String> httpHeaders, InputStream entityStream)
                        throws IOException, WebApplicationException {
            return null;
        }
    }

    Maven build - pom.xml


    <project xmlns="http://maven.apache.org/POM/4.0.0"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
        http://maven.apache.org/maven-v4_0_0.xsd">
        <modelVersion>4.0.0</modelVersion>
        <groupId>org.mmiklas.resteasy</groupId>
        <artifactId>resteasy_spring_p1</artifactId>
        <packaging>war</packaging>
        <version>1.0</version>
        <name>RESTEasy Spring - Tutorial - Part 1</name>

        <dependencies>
            <!-- Logger -->
            <dependency>
                <groupId>log4j</groupId>
                <artifactId>log4j</artifactId>
                <version>1.2.16</version>
            </dependency>

            <!-- Spring -->
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-core</artifactId>
                <version>3.1.0.RELEASE</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-web</artifactId>
                <version>3.1.0.RELEASE</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-beans</artifactId>
                <version>3.1.0.RELEASE</version>
            </dependency>
            <dependency>
                <groupId>javax.inject</groupId>
                <artifactId>javax.inject</artifactId>
                <version>1</version>
            </dependency>

            <!-- RESTEasy -->
            <dependency>
                <groupId>org.jboss.resteasy</groupId>
                <artifactId>jaxrs-api</artifactId>
                <version>2.3.2.Final</version>
            </dependency>
            <dependency>
                <groupId>org.jboss.resteasy</groupId>
                <artifactId>resteasy-jaxrs</artifactId>
                <version>2.3.2.Final</version>
            </dependency>
            <dependency>
                <groupId>org.jboss.resteasy</groupId>
                <artifactId>resteasy-jackson-provider</artifactId>
                <version>2.3.2.Final</version>
            </dependency>
            <dependency>
                <groupId>org.jboss.resteasy</groupId>
                <artifactId>resteasy-spring</artifactId>
                <version>2.3.2.Final</version>
            </dependency>
            <dependency>
                <groupId>org.jboss.resteasy</groupId>
                <artifactId>resteasy-jaxb-provider</artifactId>
                <version>2.3.2.Final</version>
            </dependency>
        </dependencies>
    </project>


    Project Source Download


    resteasy_spring_p1_src.zip
    https://github.com/maciejmiklas/resteasy_spring_p1.git

    Monday, July 16, 2012

    Ubuntu 12.04 - touchpad left button delayed reaction on Dell Precision laptop

    The Ubuntu installation on my Dell Precision T4600 (bought on 2012.06) worked just fine - besides one thing - touchpad left button. When I've tried to select text or drag window I needed to wait about one second before cursor has changed to "hand icon". The solution is, to disable, or change delay for third mouse button simulation - so far so good... but there is no such option. In my case helped something that does not make sense, but it has worked.
    Just execute those two commands:

    sudo apt-get install gpointing-device-settings
    gpointing-device-settings

    This installs and starts the mouse settings application - there is no need to do any changes, it probably overwrites some config files and problem was solved - at least in my case.

    Problem is related to this ubuntu bug

    Wednesday, May 23, 2012

    Wicket Notification Dialog - JavaScript refactoring

    This blog contains update to Wicket - Disappearing Notification Dialog post.
    I've moved JavaScript from Java code to separate file - it is in general good patern to not mix up those.


    Previous post has following JavaScript:
    effectBehavior.setCallback(new JQueryAjaxBehavior(this) {

        @Override
        public CharSequence getCallbackScript() {
            String fadeOut = "function(){$('" + dialogContainerId + ":visible').fadeOut();}";
            String callbackScript = "setTimeout(" + fadeOut + ", "
                            + Long.toString(config.getNotificationDisplayTimeMilis()) + ");";
            return callbackScript;
        }
    });
    Now we will move this JavaScript to notifier.js file, define there JS functions and call those functions from Java code.
    notifier.js
    function fadeOutDialog() {
        $("${dialogContainerId}:visible").fadeOut();
    }

    function playBounce() {
        setTimeout(fadeOutDialog, "${notificationDisplayTimeMilis}");
    }
    and modified getCallbackScript method:
    effectBehavior.setCallback(new JQueryAjaxBehavior(this) {

        @Override
        public CharSequence getCallbackScript() {
            return "playBounce()";
        }
    });
    Additionally to execute playBounce() from notifier.js we need to register it on our HTML page and pass arguments  ${dialogContainerId} and ${notificationDisplayTimeMilis}
    We will create JavaScriptTemplate as global variable in Notifier class, and overwrite renderHead  method which will append JavaScript into page header and also will set required properties:
        private JavaScriptTemplate notifierJs =
          new JavaScriptTemplate(new PackageTextTemplate(Notifier.class, "notifier.js"));

        @Override
        public void renderHead(IHeaderResponse response) {
            Map<String, String> cssVariables = new HashMap<String, String>();
            cssVariables.put("dialogContainerId", dialogContainerId);
            cssVariables.put("notificationDisplayTimeMilis",
                       Integer.toString(config.getBounceTimeMilis()));
            response.renderString(notifierJs.asString(cssVariables));
        }

    Monday, May 21, 2012

    Apache HTTP Commons and Cookie support for REST Services

    Apache HTTP commons is a framework for managing client HTTP connections - compared to standard Java Sockets it offers easier way to handle persistent connections, pooling, and high level socket API. It also support cookies - and I would like to concentrate on this subject now, especially in REST context.

    This is the typical way how most Java applications are using HTTP client.
    public class RestClient {

        static HttpClient httpClient = null;
        static {
            ThreadSafeClientConnManager cm = new ThreadSafeClientConnManager();
            httpClient = new DefaultHttpClient(cm);
        }

        public HttpResponse executeGet(URI url) throws Exception {
            return httpClient.execute(new HttpGet(url));
        }
    }
    For the most cases it is also a preferred way - HttpClient is thread save, and keeping single instance saves resources and increases performance.

    Bu there is a catch, if your have a multi-thread server application, which shares single instance of HttpClient and you have to also manage cookies.
    Multiple threads use single HttpClient to connect to different URLs at the same time - HttpClient is thread save, so this is allowed - but have you checked how DefaultHttpClient manages cookies? It simulates browser, but in our case this browser is being used simultaneously by several users....

    HttpClient executes call against remote REST service and in response it receives a Cookie - this Cookie is valid for given domain and path and our request was executed on concreate URL - everything looks normal. When we use the same instance of HttpClient to execute another call on the same URL it will send back cookies, that were returned by previous response. If cookies were issued for sub-domain or root path, they will be also send. This is the way how normal browser would behave. And here is a catch! Our HttpClient behaves like browser but we are using it in multi-thread environment, where we communicate with many different services within different scopes - now this can have advantages, but it can be also source for serious problems.

    Lets consider few scenarios - we will use as example a small application which executes calls for different users, each one is identified by integer ID (URI part).

    Scenario A  - cookies with root path
    HttpClient client sends request to http://registration.foo.com/register/234234, as response it receives some data and also cookie:

    Set-Cookie: USER_ID=234234; Expires=Thu, 01 Jan 2049 00:00:01 GMT; Path=/; Domain=.foo.com

    Request above stored cookie in HttpClient instance - its CookieStore exactly. Some time later the same instance of HttpClient is being used to execute following request: http://registration.foo.com/register/333222. Since domain and path for request match, response to this request will forward cookie which was set by previous call.
    The question is - do you really wanted to send this cookie back within this response (different User ID in URL)?
    Actually we have just used standard HttpClient and the rest was caused by service that we've called - it set cookie on wrong path, which did not contain  User ID. But still, this might be an issue - depends how this cookie will be interpreted - it might be used as User ID instead of ID from URL (nasty, but hey - it's REST - there are no rules).

    Scenario B - identical URL for different context (users)
    We call REST service which uses for all methods the same URL, User IDs are part of PUT/POST request's body. In this case our multi-thread application will use the same URL to execute calls for different users. HttpClient will send back all cookies for each request! Message body contains different User ID, but this is not relevant for CookieStore - only URL matters. Now imagine what happens when our REST interface will try to use cookie to open HTTP session - yes - we would mix up sessions.



    Using single HttpClient is in general good idea, but we have to be careful when it comes to cookies. Most REST services do not use them, but in this case we should simply disable cookie support, just to be sure.

    We can also create new instance of HttpClient for each request (conversational state). This is just fine, until you use shared ThreadSafeClientConnManager instance for each new HttpClient.
